Universal Multi-Unit Abutment

for 3.5 mm and 4.5 mm TSV® and TSX™ Implant connections

Hero jumplink image
OverviewFeatures & BenefitsOrdering InformationResourcesContact Us



Universal Multi-Unit Abutments for 3.5 mm and 4.5 mm TSV® and TSX™ Implant connections

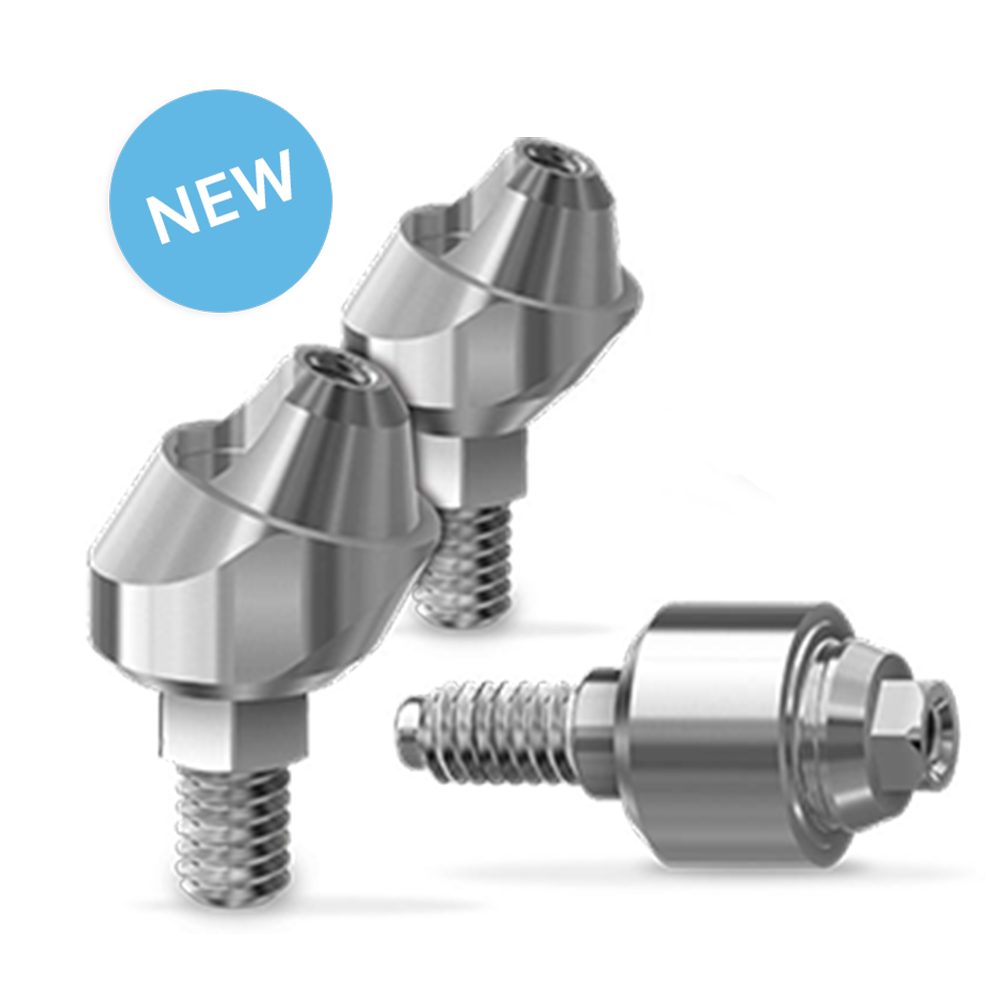

The Universal Multi-Unit Abutment

A complete solution with a digital workflow for screw retained restorations.

An extensive range of abutment angles and collar heights for TSV and TSX 3.5 mm and 4.5 mm implant connections make it the  ideal choice for your clinical requirements.

Request More Information



Simplicity and flexibility in your practice

4.8 mm restorative platform

Streamline your armamentarium and reduce  your inventory requirements

2.2 mm restorative height

Create functional aesthetic restorations in  limited interarch spaces, even when angle  correction is necessary

17° and 30° angled abutments

Provide angulation correction for off-axis implant placement

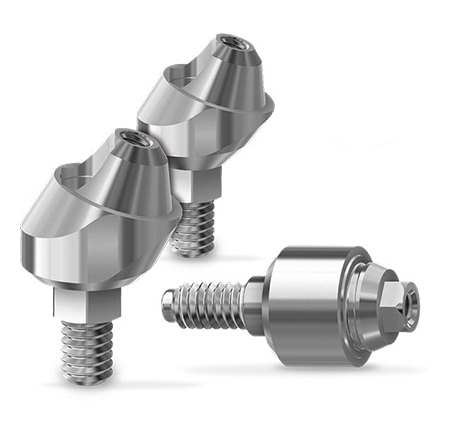

Universal Multi-Unit Abutments



Universal Multi-Unit Abutments for 3.5 mm and 4.5 mm TSV® and TSX™ Implant connections

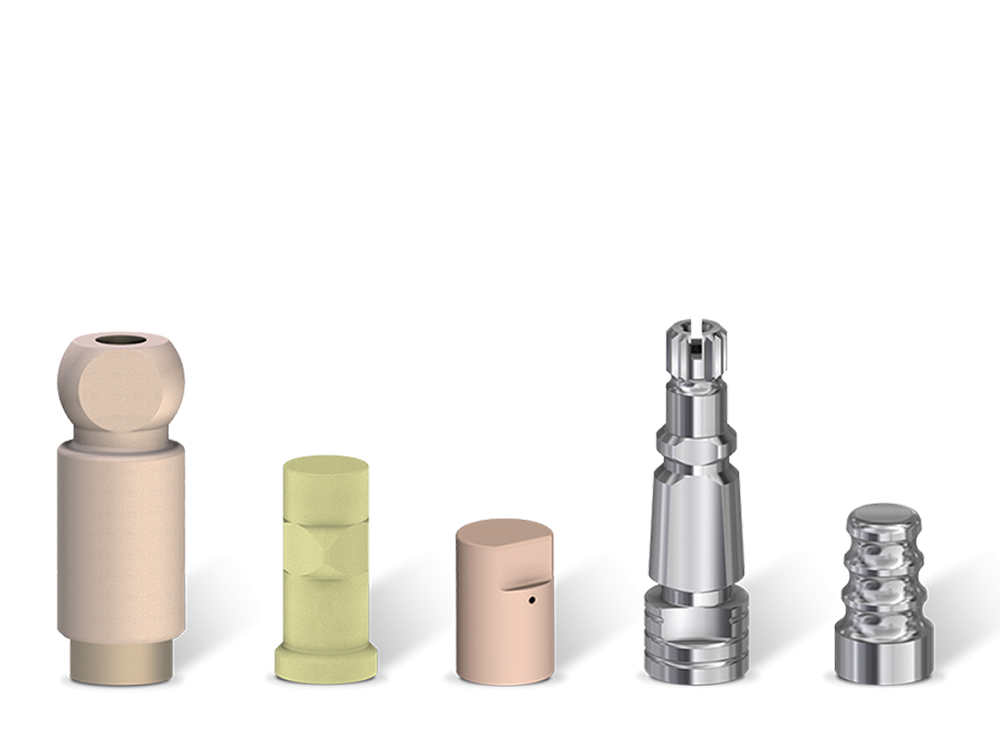

Universal TiBase available in multiple gingival heights giving you more options in treatment planning.

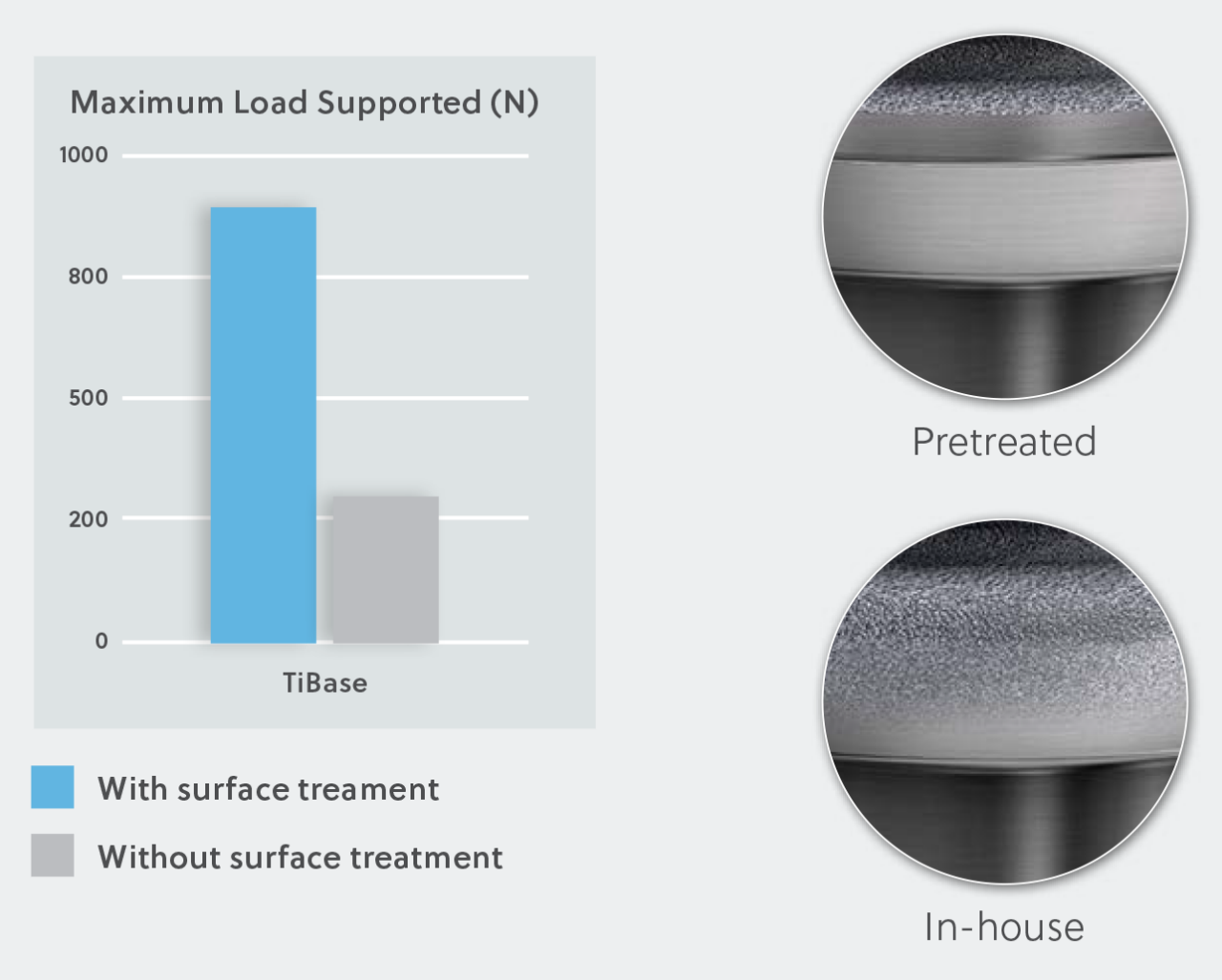

Improved retention up to 500%. A unique, patented, sandblasted treatment improves the retention levels of the cemented prosthesis.

Without treatment, the load that can be supported before the bond between the superstructure and TiBase breaks is much lower.

In-house sandblasting means more chair time and if it is not performed properly (below the collar), it can increase the risk of gingivitis.

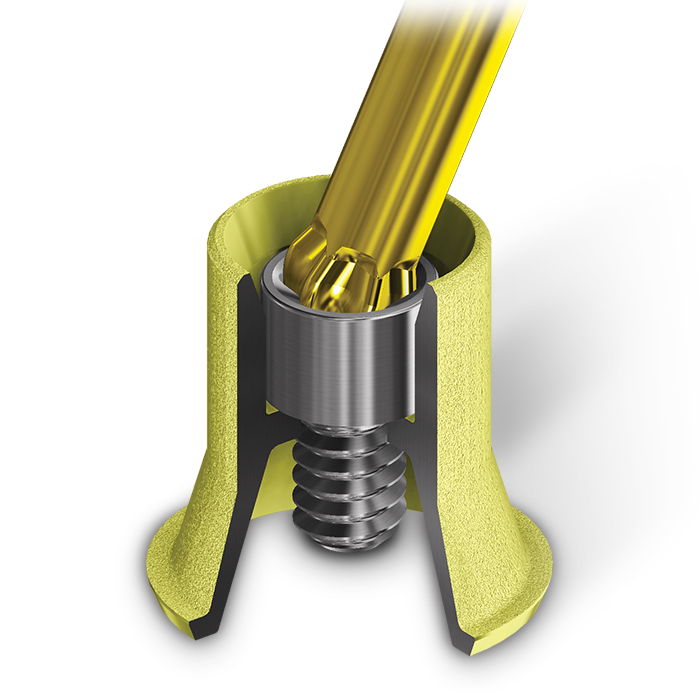

Universal Angulated Screw Channel TiBase

Allows you to access limited spaces.

  • Up to 30% reduction in the emergence design within CAD libraries to further improve the flexibility and aesthetic outcome
  • Beveled edge optimizes the driver angulation
  • The angulated TiBase screw and driver allows for up to 25° angulation with the recommended torque
  • Cement shaft with a unique patented surface treatment for optimal crown retention
  • Made of Titanium Grade V ELI with a gold anodized surface finish
Universal Multi-Unit Screw





Ordering Information

TSV® and TSX™ Implant Systems

Universal Straight Abutment

Universal Straight Abutment

Non-engaging, does not engage in the internal hex connection. Not for use in single-unit restorations.

Universal Angled Abutment, 17°

Universal Angled Abutment, 17°

Engaging in implant, not for use in single-unit restorations (incl. preassembled retaining screw)

Universal Angled Abutment, 30°

Universal Angled Abutment, 30°

Engaging in implant, not for use in single-unit restorations (incl. preassembled retaining screw)



Resources

Brochures
Universal Multi-Unit Abutment Brochure
ZV0858 REV A 04/23 (EMEA)
Universal Multi-Unit Abutments Data Sheet
ZV0859 REV A 04/23 (EMEA)
Universal Multi-Unit Abutments Brochure
ZV0858DE REV A 04/23
Pilares Universal Multi-Unit Brochure
ZV0858ES REV A 04/23
Abutment multi-unit universali Brochure
ZV0858IT REV A 04/23
Universal Multi-Unit Abutments Brochure
ZV0859DE REV A 04/23
Pilares Multi-Unit universales Data Sheet
ZV0859ES REV A 04/23
מבנים אוניברסליים למולטי יוניט
ZV0859IL REV A 04/23
Abutment multi-unit universali Brochure
ZV0859IT REV A 04/23

Additional Information

IFU - Instructions for Use

Link to Electronic Labeling Service Portal
